Census Sampling

Author

Simon Taye

Published

July 22, 2025

Abstract

Plots of the ongoing census sampling to ensure coverage is what we expect

Link to Map IPA Shared

Labelling Issues

Note that a lot of the communities are mislabelled; a tell-tale sign is that a point within a community is far away from all the other points.

I have corrected all such issues by:

  1. Calculating the ‘center’ of a community (simple mean)
  2. Calculating the distance of all points within a community from its center and computing the average_distance
  3. Marking those where the distance > (1.5 * avg_distance)
  4. Recomputed the center of all communities after excluding the outliers
  5. For all outliers, find their ‘true’ community by determining the closest center

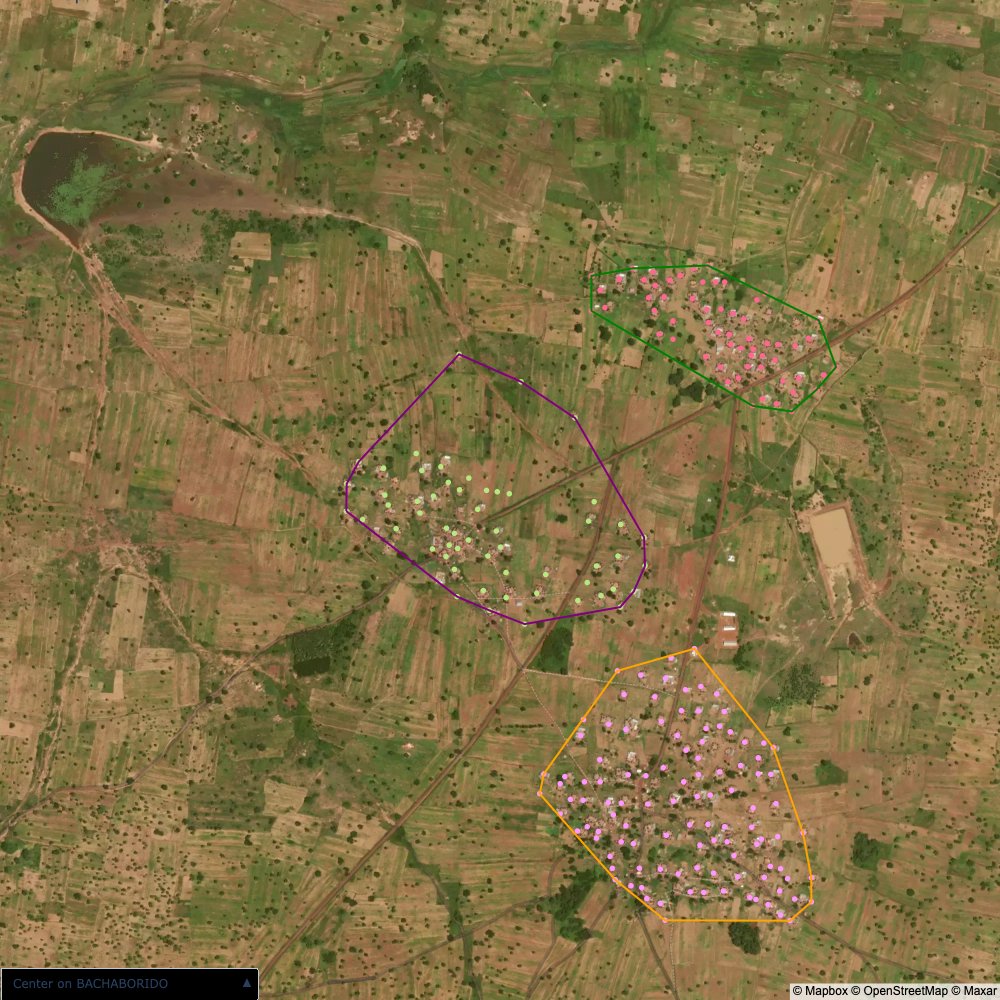

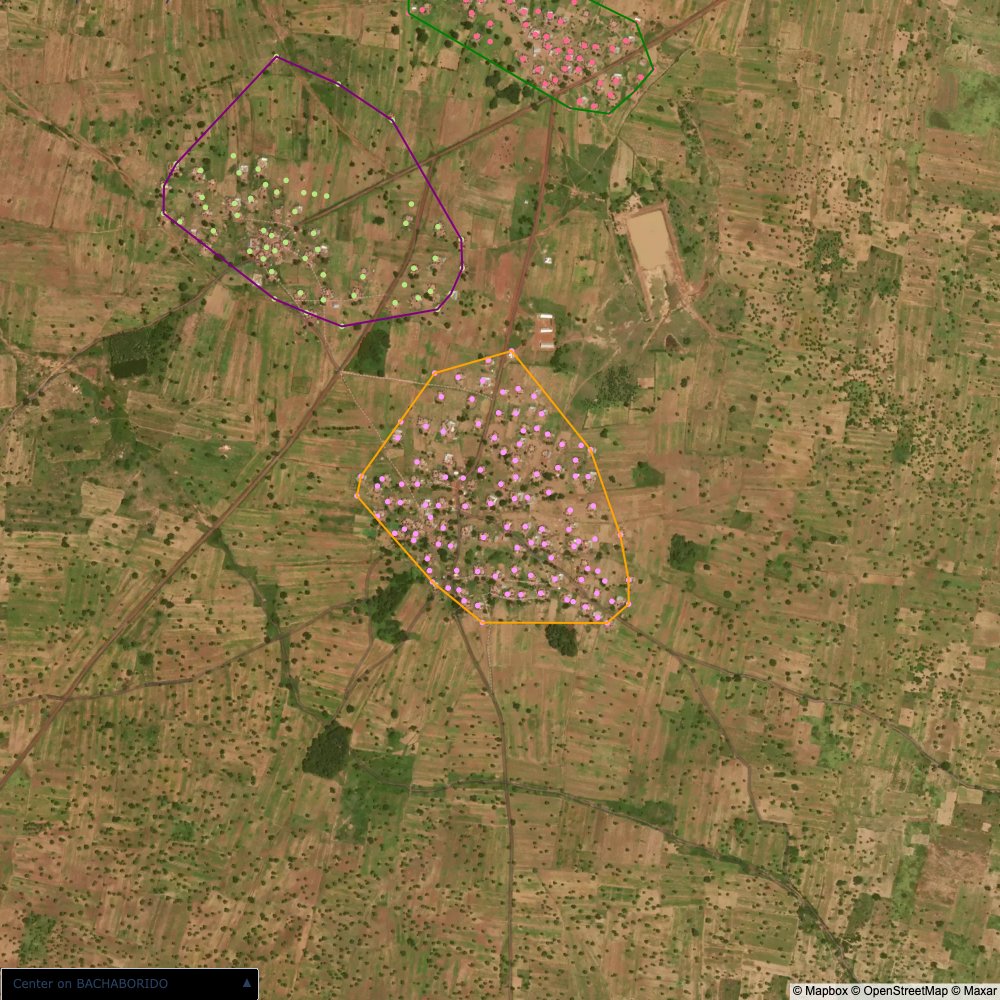

The visualizations below show the difference with polygons around all points of community as a rough boundary of the towns

The visualizations below show the points and boundaries around the raw data. Some boundaries span the entire map, showing that points in clearly different places are mislabelled as the same community. Fortunately, it is not too hard to see which points are incorrectly labelled since they are far away from other similarly labelled points. We don’t have any cases where we 2 (or more) large mass of points with the same community label

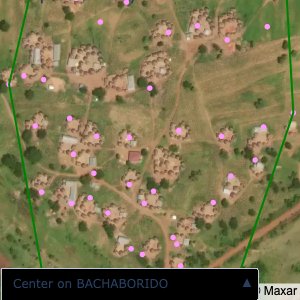

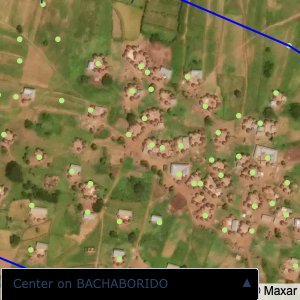

The one (loose) exception is KPALSOGU; however this is because there are two communities with the same name. To solve this problem, I used a simple K-Means algorithm to cluster the points into the two different communities. In the actual data, we would be able to tell them apart by district (the raw GPS data doesn’t have district data causing the confusion)

Code
```{python}
map_areas.plot_community_alpha_shapes(raw_df, raw_gdf)
```

After running the algorithm, the community boundaries and point locations all look reasonable

Code
```{python}
map_areas.plot_community_alpha_shapes(df, gdf)
```

Interactive Map

Code
```{python}
fig = map_areas.plot_community_alpha_shapes(df, gdf, satellite=True)
fig
```

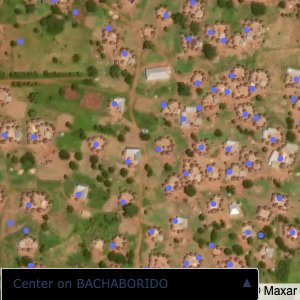

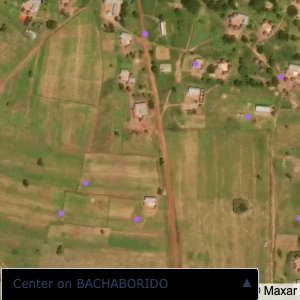

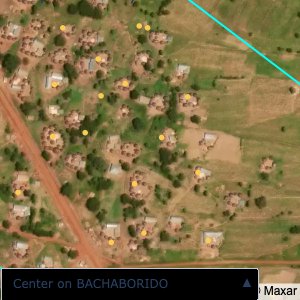

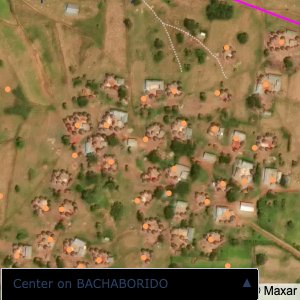

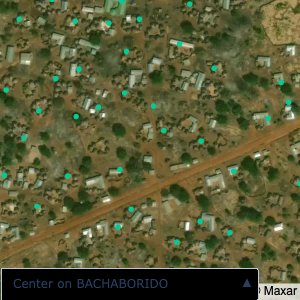

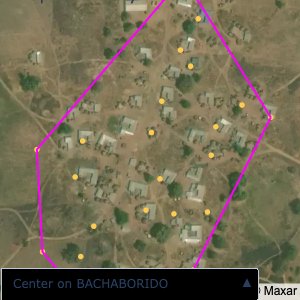

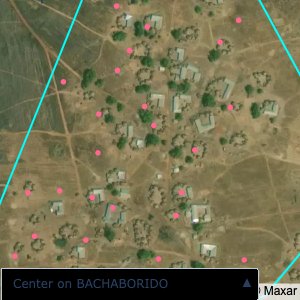

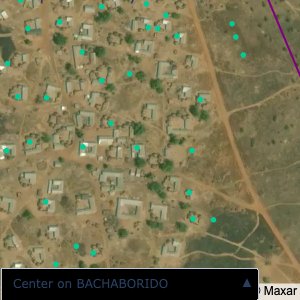

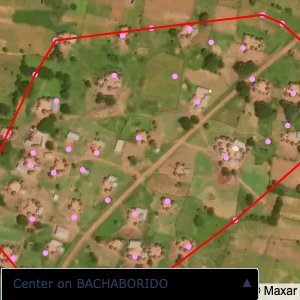

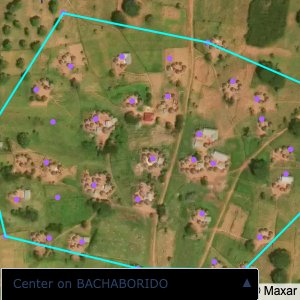

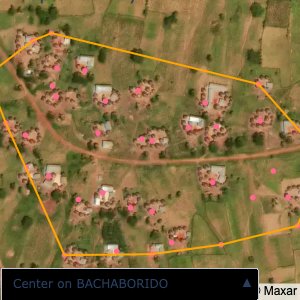

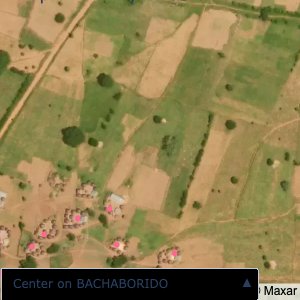

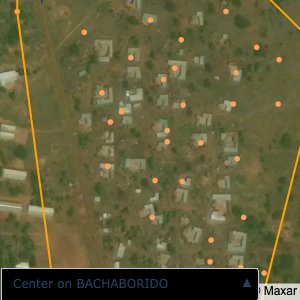

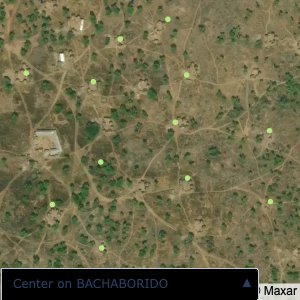

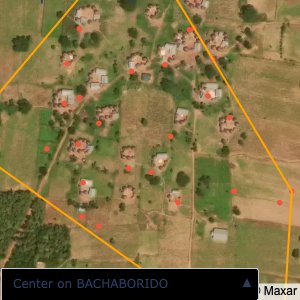

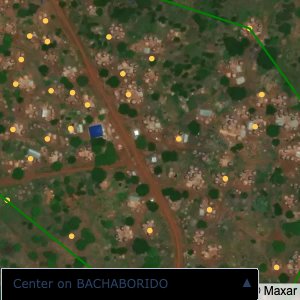

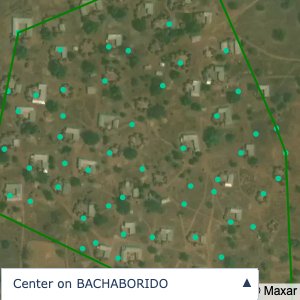

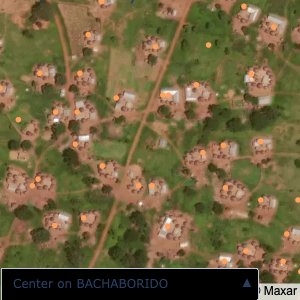

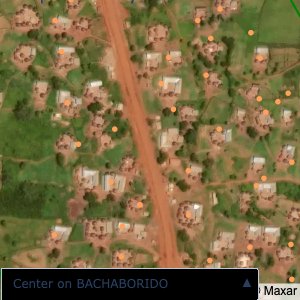

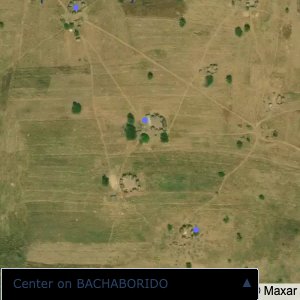

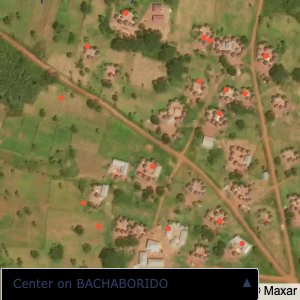

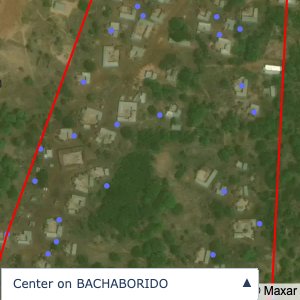

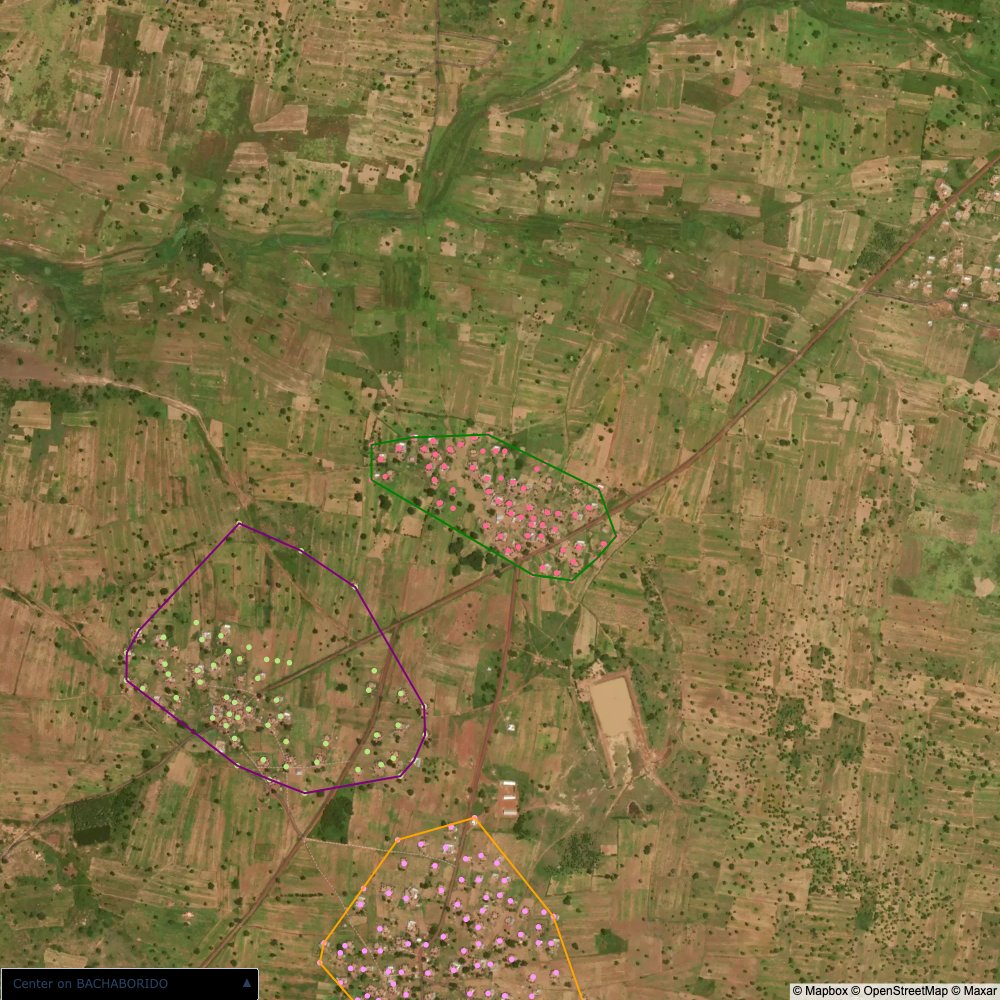

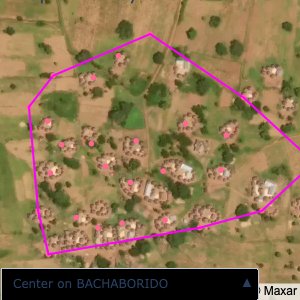

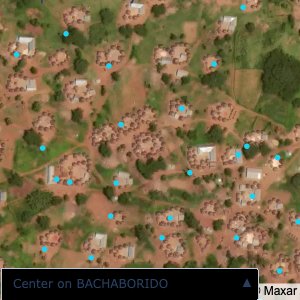

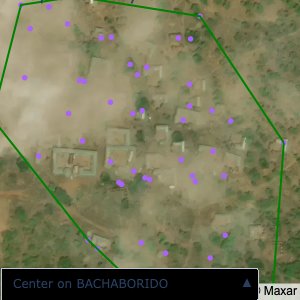

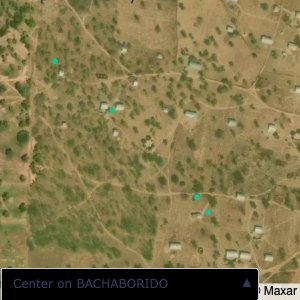

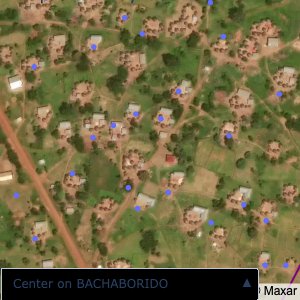

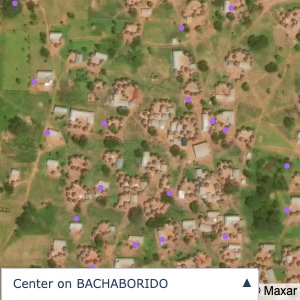

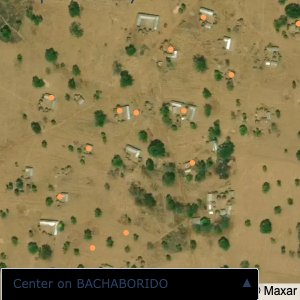

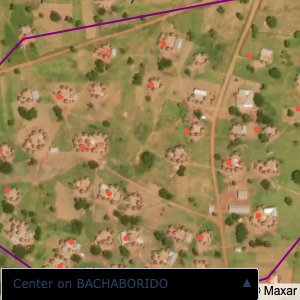

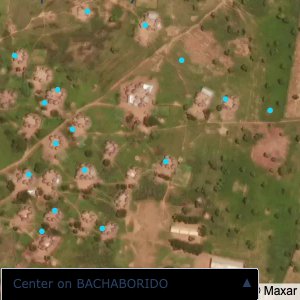

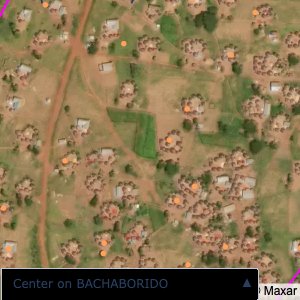

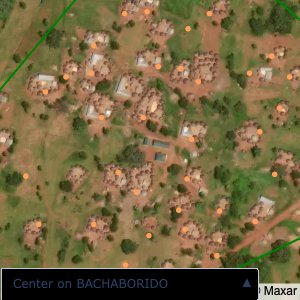

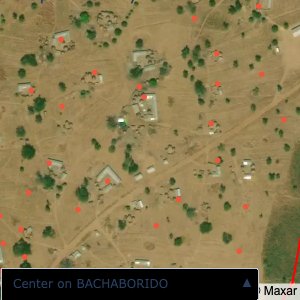

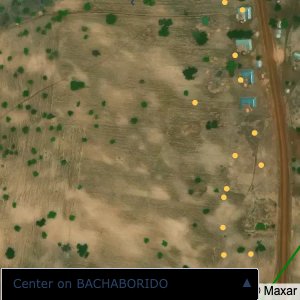

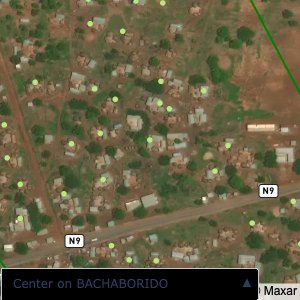

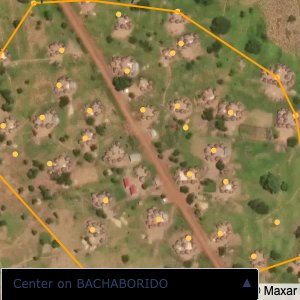

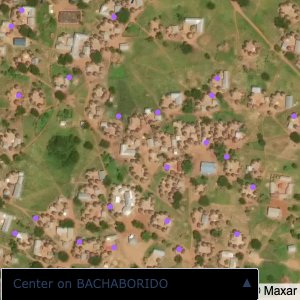

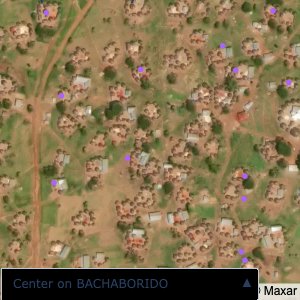

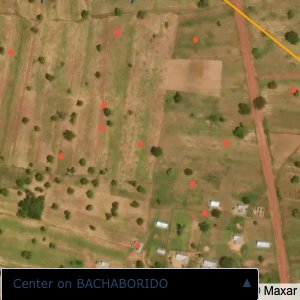

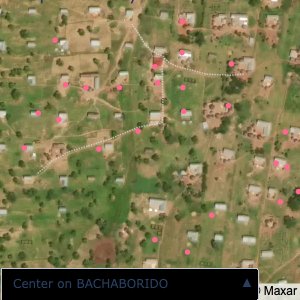

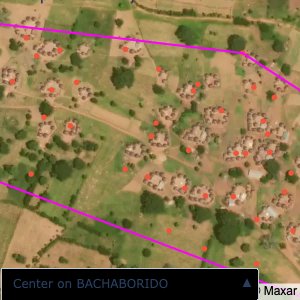

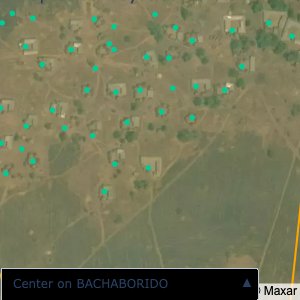

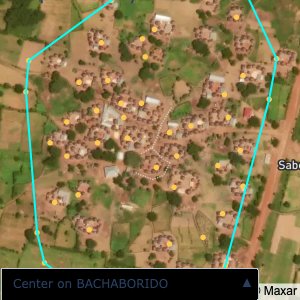

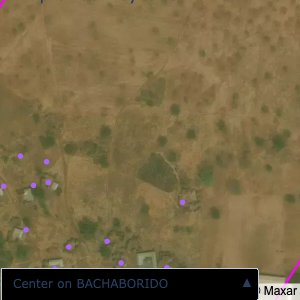

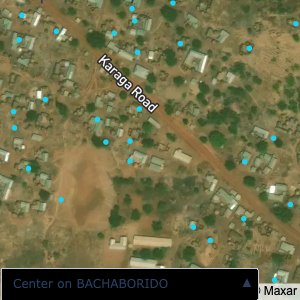

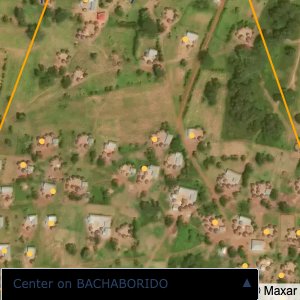

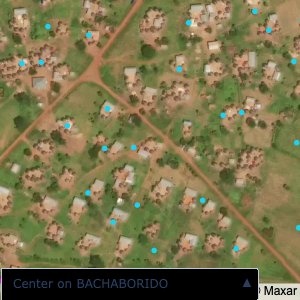

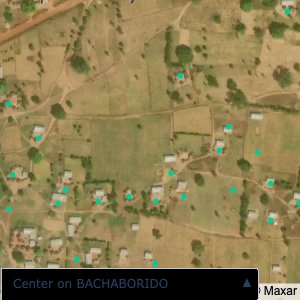

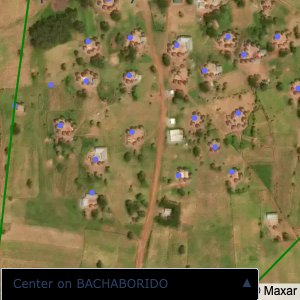

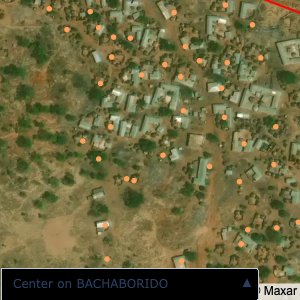

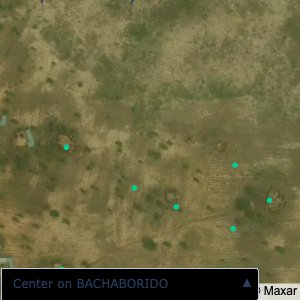

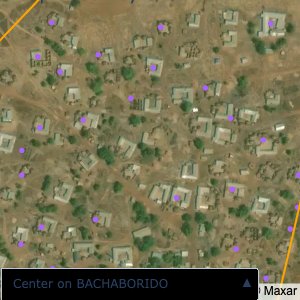

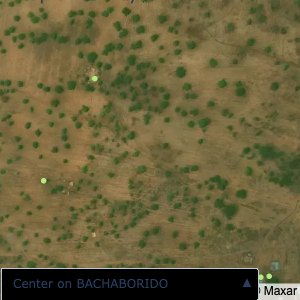

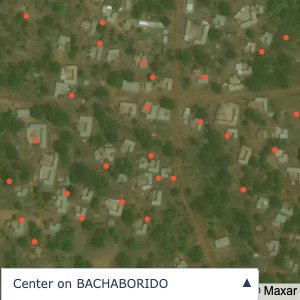

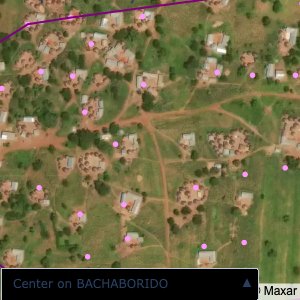

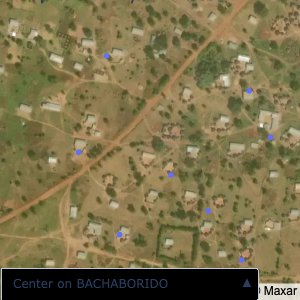

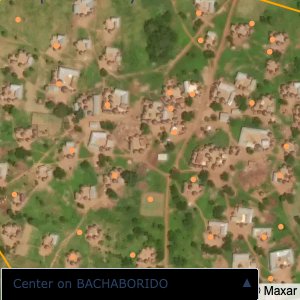

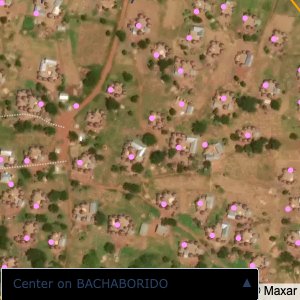

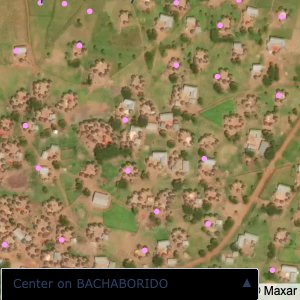

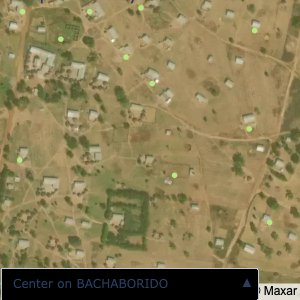

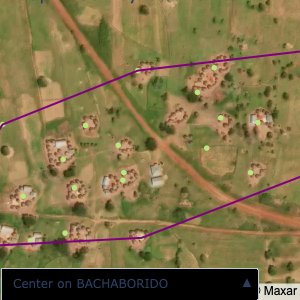

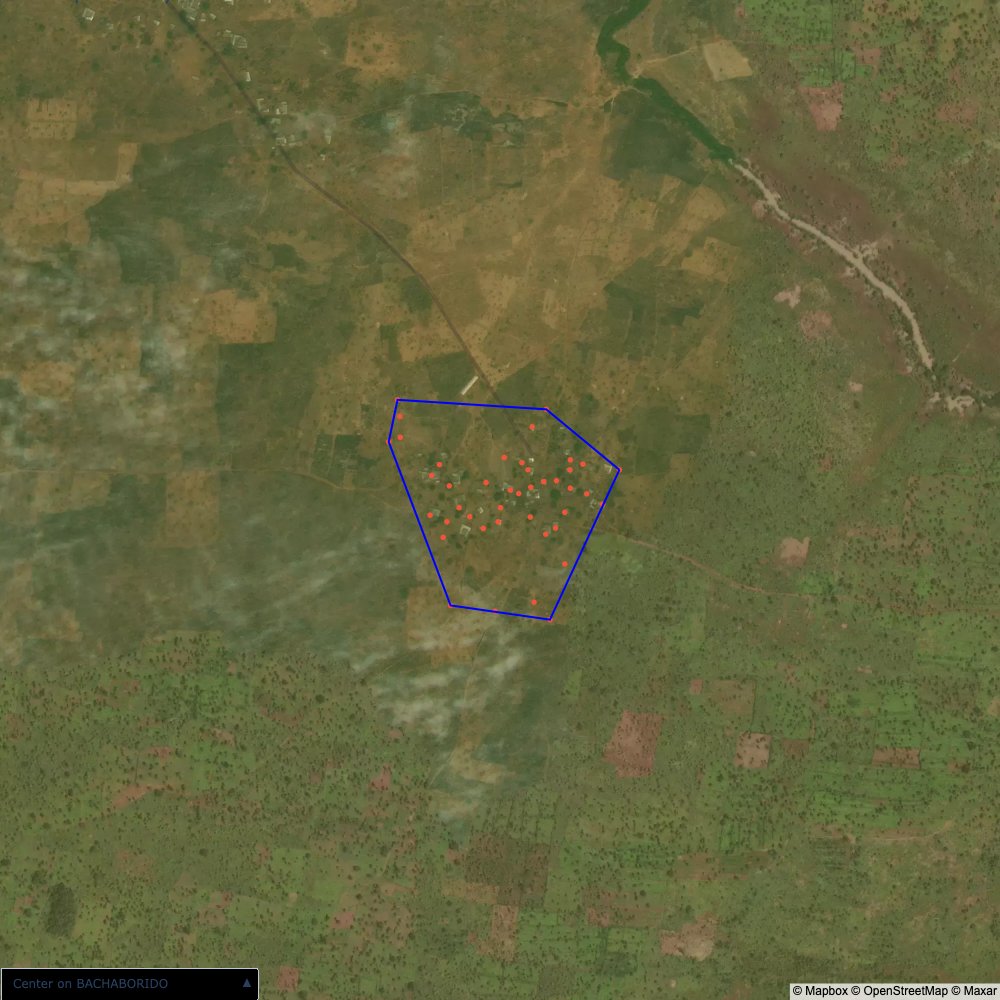

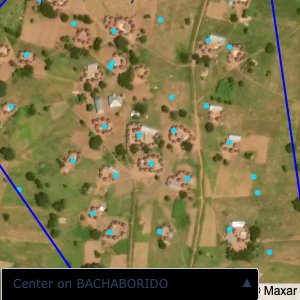

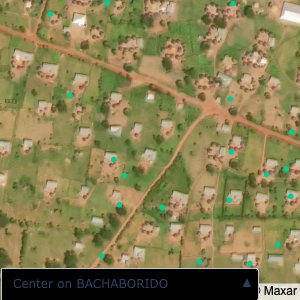

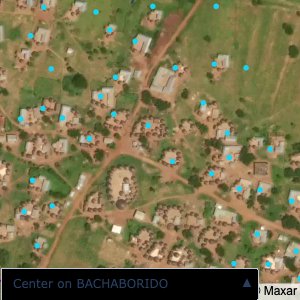

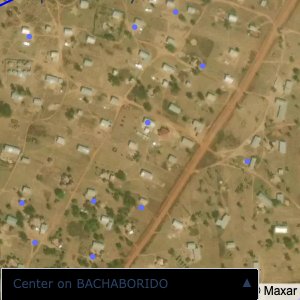

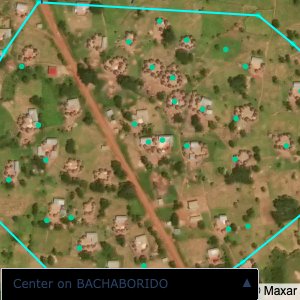

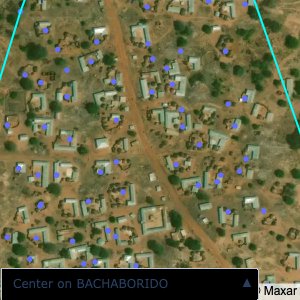

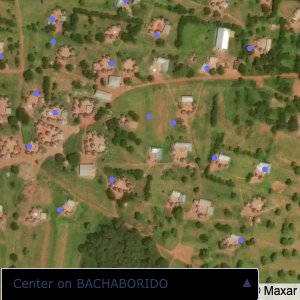

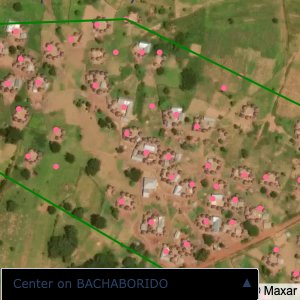

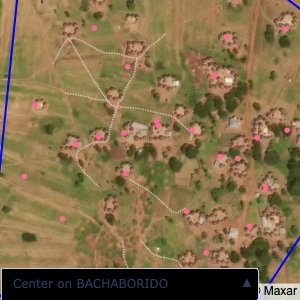

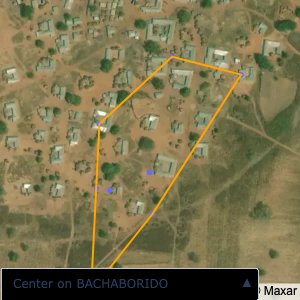

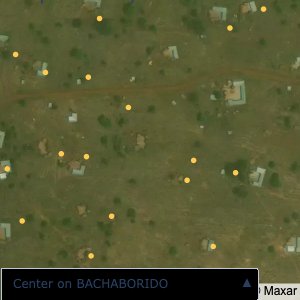

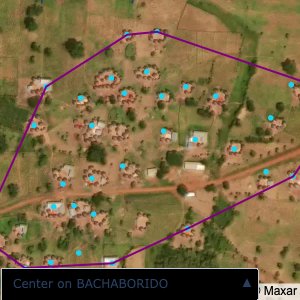

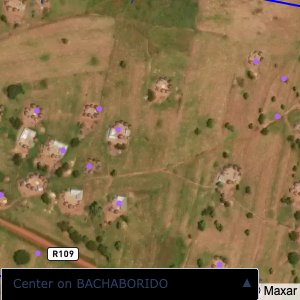

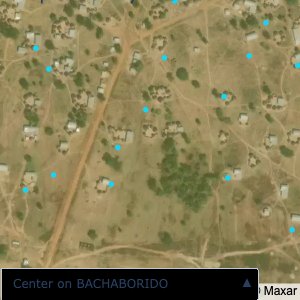

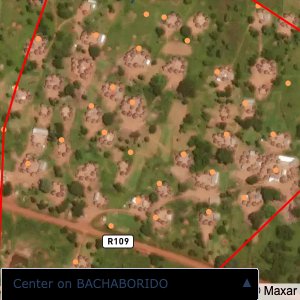

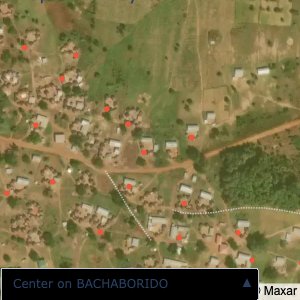

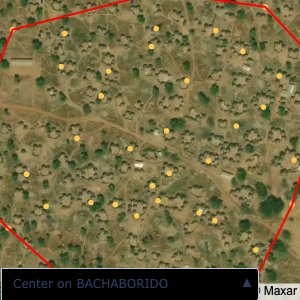

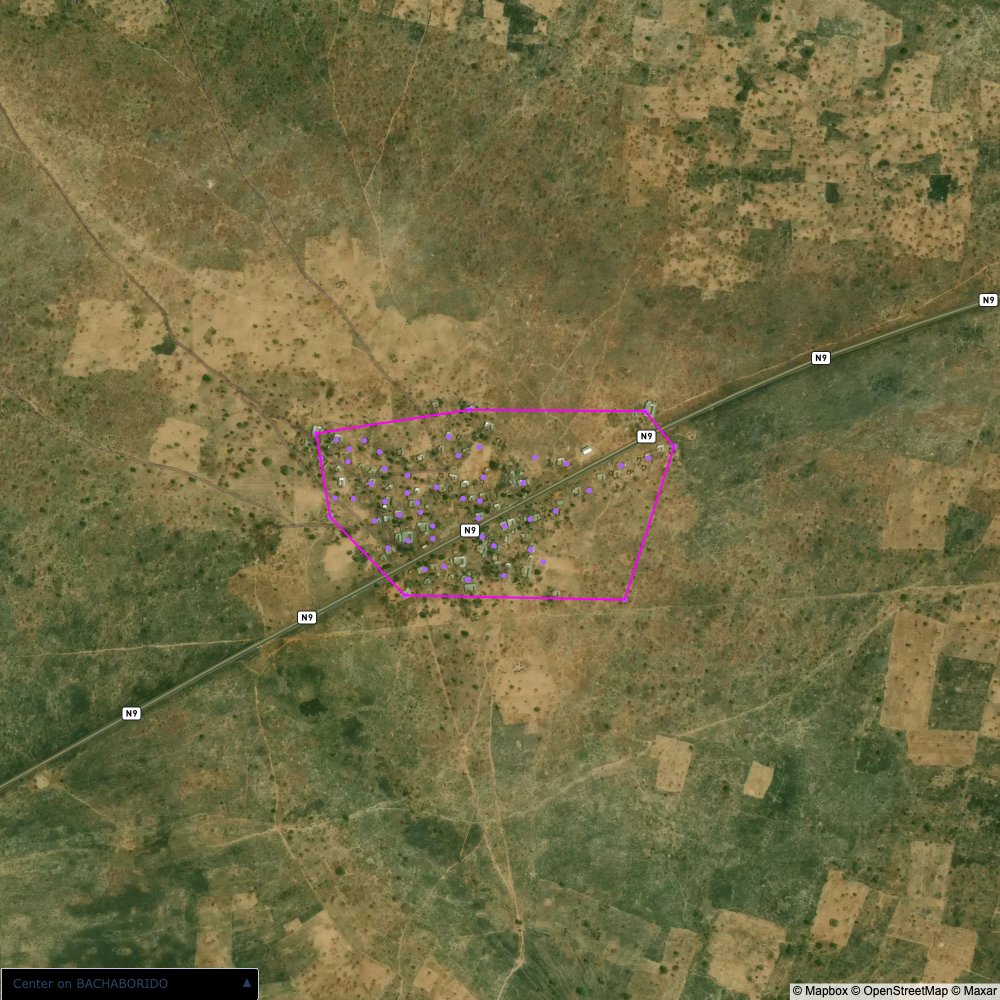

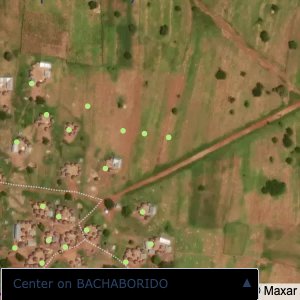

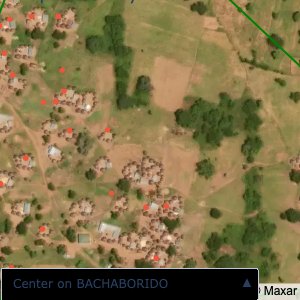

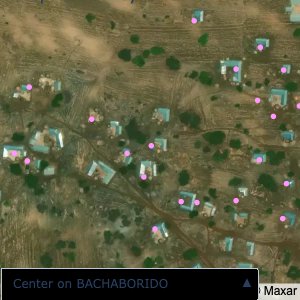

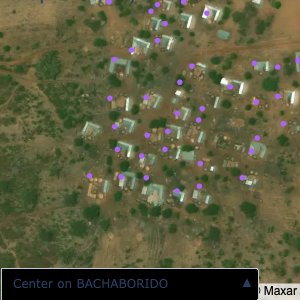

Screenshots

Code
```{python}
def gallery(images, row_height="auto"):
    """Shows a set of images in a gallery that flexes with the width of the notebook.

    Parameters
    ----------
    images: list of str or bytes
        URLs or bytes of images to display

    row_height: str
        CSS height value to assign to all images. Set to 'auto' by default to show images
        with their native dimensions. Set to a value like '250px' to make all rows
        in the gallery equal height.
    """
    figures = []
    for image in images:
        src = image
        figures.append(
            f"""
            <figure style="margin: 5px !important;">
              <img src="{src}" style="height: {row_height}">
            </figure>
        """
        )
    return HTML(
        data=f"""
        <div style="display: flex; flex-flow: row wrap; text-align: center;">
        {''.join(figures)}
        </
            """
    )


VILLAGE_DIR = os.path.join(ROOT_DIR, "resources", "images", "villages")
# This takes upto 10 mins
EXPORT_IMAGES = False

# Quarto wants a path relative to working directory
VILLAGE_DIR_RELATIVE = os.path.join("resources", "images", "villages")


# Export images for communties
def export_image(fig, row):
    fig.update_layout
    fig.update_layout(
        mapbox=dict(
            zoom=16, center=dict(lat=row["centroid_lat"], lon=row["centroid_lon"])
        ),
    )
    file_name: str = row["community"].replace("/", " ").replace(".", " ")
    fig.write_image(
        os.path.join(VILLAGE_DIR, f"{file_name}.png"), width=300, height=300
    )


if EXPORT_IMAGES:
    for _, row in gdf.iterrows():
        export_image(fig, row)

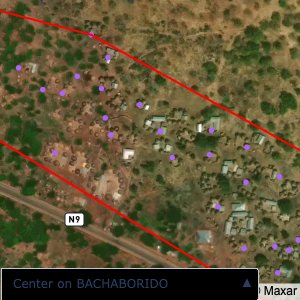

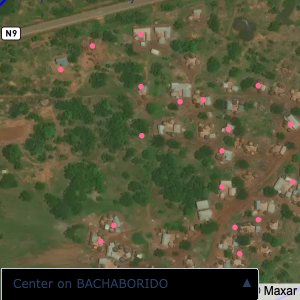

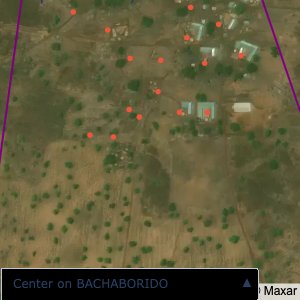

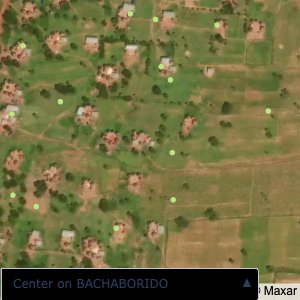

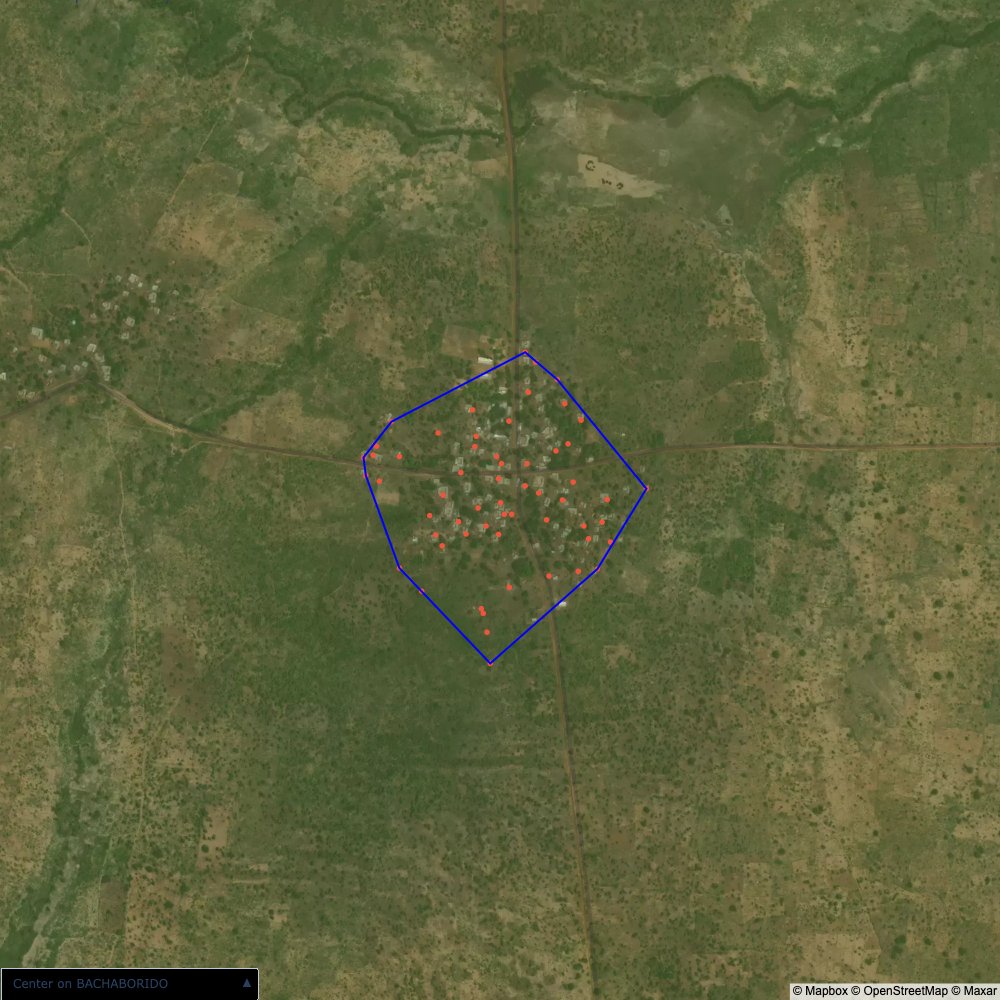

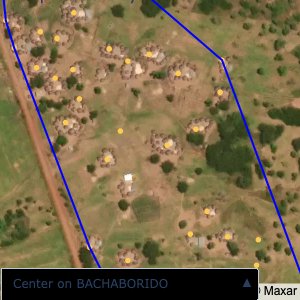

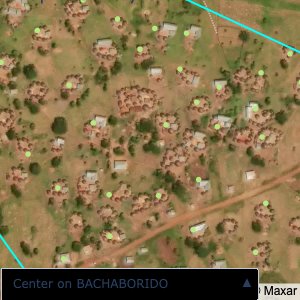

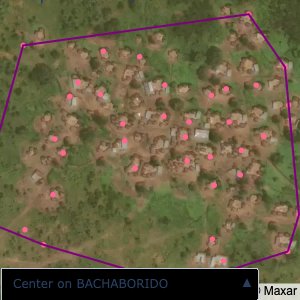

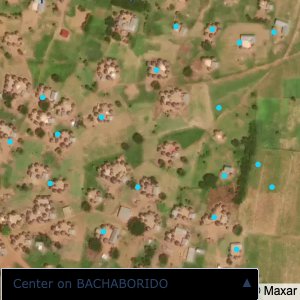

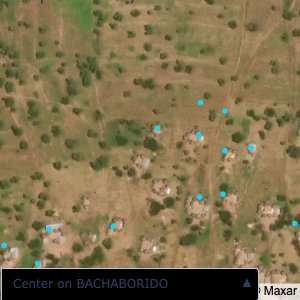

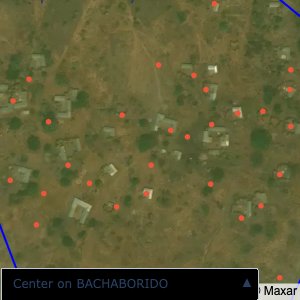

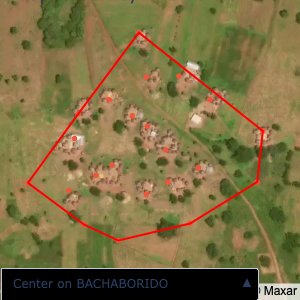

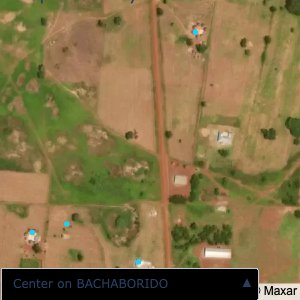

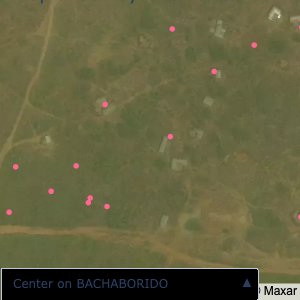

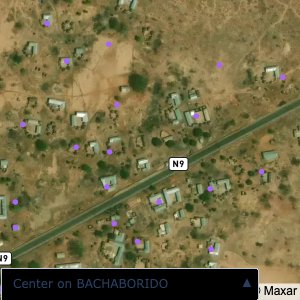

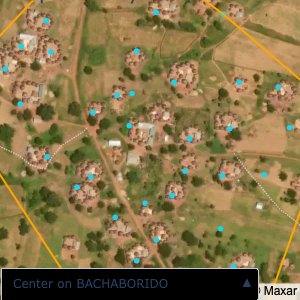

# Read through all the files in VILLAGE_DIR and display using gallery
village_images = [
    os.path.join(VILLAGE_DIR_RELATIVE, file) for file in os.listdir(VILLAGE_DIR)
]
gallery(village_images, row_height="300px")
```
